In the realm of industrial display technologies, Character Liquid Crystal Displays (LCDs) stand out for their efficiency, reliability, and versatility. As a specialist in this field, my experience at Longtech has shown me the critical role these displays play across various sectors, from medical devices to automotive dashboards. Their low power consumption, clear readability under diverse lighting conditions, and long lifespan make them indispensable in many applications.

Among these, the 1602 LCD display holds a special place. Originating from the 1980s, this display remains remarkably popular to this day. You can find it in a plethora of devices, testament to its enduring relevance and utility.

The 1602 LCD, with its basic yet functional design, might be one of the oldest and simplest displays you’ll encounter. But what makes it so special? Let’s dive into its operation and see why it continues to be a go-to choice for many applications.

Introduction to the 1602 LCD Display

The 1602 LCD display or 16×2 LCD display, originating from the vibrant era of the 1980s, showcases the remarkable endurance of technology that is designed with purpose and simplicity. This screen, despite being decades old, continues to be a staple in various electronic devices, underscoring its widespread acceptance and functionality. The 1602 LCD exemplifies how a product can transcend time, maintaining relevance through changing technological landscapes by focusing on core utility and efficiency.

The Legacy of the 1602 LCD

  • Historical Context: Emerging in a time of rapid technological advancements, the 16×2 LCD has stood the test of time, proving the lasting value of its design.
  • Enduring Popularity: Its continued use in a myriad of applications today speaks volumes about its adaptability and the enduring appeal of its simple yet effective functionality.
  • Simplicity and Efficiency: The 16×2 LCD’s design philosophy centers on providing practical, straightforward solutions to display needs, a principle that has ensured its longevity.

Design Philosophy

  • Functionality Focused: Tailored to excel in utility, the 16×2 LCD emphasizes a no-frills approach to display technology, prioritizing clear and concise visual communication.
  • Sustained Relevance: Its design cleverly navigates the balance between simplicity and functionality, enabling it to serve effectively across different technological eras.
  • Versatility in Application: The screen’s adaptable nature has made it an invaluable component in both consumer electronics and industrial applications, showcasing its broad utility.

Learn more about How to Make LCD Glass?

How the 1602 LCD Display Works

The 1602 LCD operates through the manipulation of liquid crystals to display information—a technology that was quite innovative at its time of inception. These liquid crystals, when subjected to electrical currents, change orientation, thus modulating light to create visible images or text. This fundamental mechanism of action allows the 1602 LCD to serve a wide range of display purposes, from simple calculators to complex industrial equipment, demonstrating its versatility and enduring relevance.


Liquid Crystal Technology

  • Fundamentals of Liquid Crystals: The screen’s ability to control light through liquid crystals is a marvel of engineering, enabling precise display capabilities.
  • Operation Principle: This principle of operation, leveraging liquid crystals’ unique properties, forms the backbone of the screen’s functionality.
  • Technical Innovation: The application of liquid crystal technology in the 16×2 LCD was a forward-thinking solution that has allowed it to remain useful and relevant.

The Creation of Pixels

  • Pixel Formation: The intricate process of forming pixels by controlling light passage through liquid crystals is central to the screen’s ability to convey information.
  • Visual Representation: This method provides the means to display both text and graphics with clarity, ensuring effective communication of information.
  • Precision and Clarity: The screen’s precision in controlling pixels translates into displays that are both legible and visually appealing.

Pixel Layout and Display Resolution

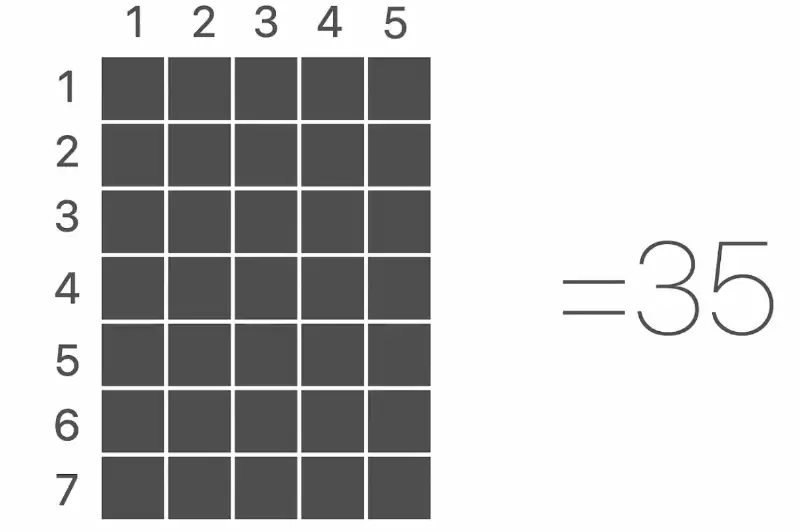

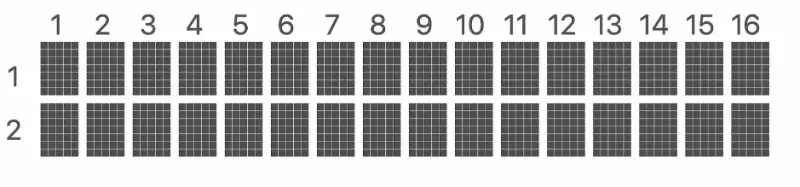

At its core, the 1602 LCD displays characters and patterns through an array of pixels. If you were to look closely, you’d see that these pixels are tiny squares. When all pixels are activated, you’ll notice the display is composed of 16 horizontal regions and 2 vertical ones—hence the model number 1602. Each region contains 5×7 pixels, amounting to 35 pixels per area and a total of 1120 pixels across the screen.

Understanding the Resolution

  • Resolution Specifications: The choice of resolution for the 16×2 LCD is a deliberate balance between display clarity and system resource efficiency.
  • Optimized Layout: This layout ensures that the screen can effectively communicate information without the need for high-resolution graphics.
  • Application Suitability: The resolution is particularly well-suited for applications where simple, clear display output is paramount, such as in industrial controls or basic consumer electronics.

Resolution’s Role in Display

  • Balanced Design: The 16×2 LCD’s resolution is a testament to the display’s design efficiency, offering clear visibility while conserving power.
  • Targeted Applications: Its design caters to devices that require straightforward text and symbol displays, highlighting its role in practical applications.
  • Efficiency in Use: The screen’s use of resolution exemplifies a focused approach to display technology, prioritizing clarity and utility over complexity.

Pixel Control Mechanism

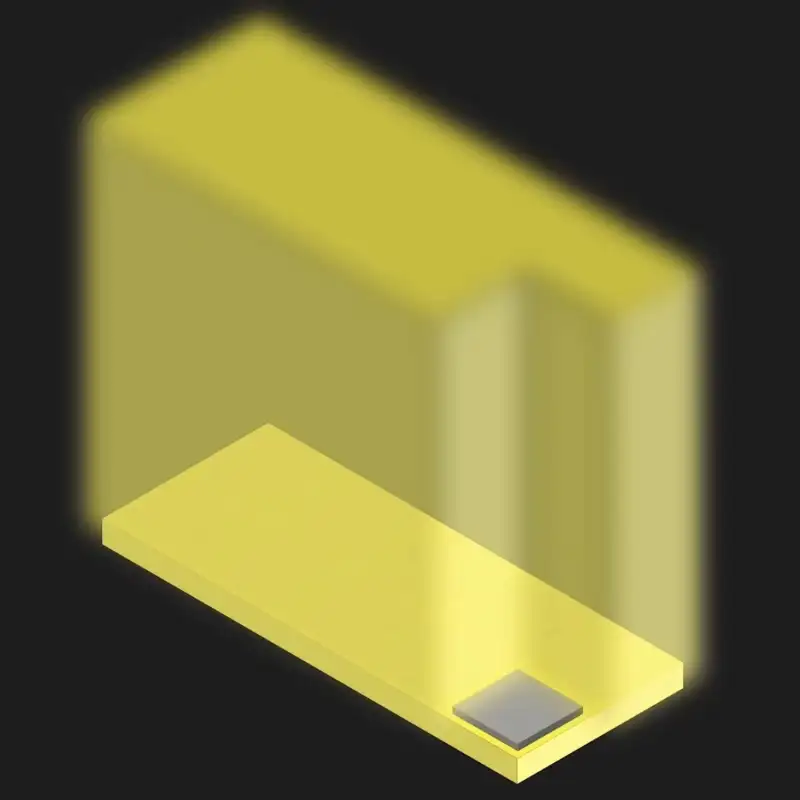

Understanding how over a thousand pixels are managed requires a look at the individual pixel control. Beneath the display lies an LED backlight that illuminates the screen. Above this backlight is a layer of liquid crystal, with each pixel controlled by a small segment of this material. In its default state, the liquid crystal is nearly transparent. However, applying voltage to a segment makes it opaque, creating the dark pixels we see.

This binary operation—transparent or opaque—eliminates the need for color display. Controlling a pixel’s state is as simple as adjusting the voltage across the liquid crystal segment.

Voltage Manipulation

  • Control Through Voltage: The technique of applying voltage to manipulate pixel state is both elegant and efficient, ensuring reliable display functionality.
  • Binary State Control: This straightforward mechanism underpins the screen’s ability to display information clearly and accurately.
  • Technical Precision: The precision offered by this control method is crucial for the screen’s performance, enabling it to function effectively across various applications.

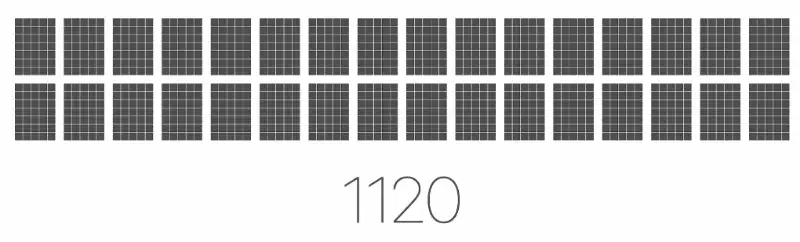

The Challenge of Managing 1120 Pixels

Direct control of each pixel by a microcontroller is feasible for small counts. However, with 1120 pixels, this approach is impractical due to the limited number of pins on a typical microcontroller. This limitation led to the development of the HD44780U display controller chip, featuring 80 pins, simplifying the programming and control process significantly. This chip acts much like a graphics card in a computer, taking on the heavy lifting of managing the display’s pixels.

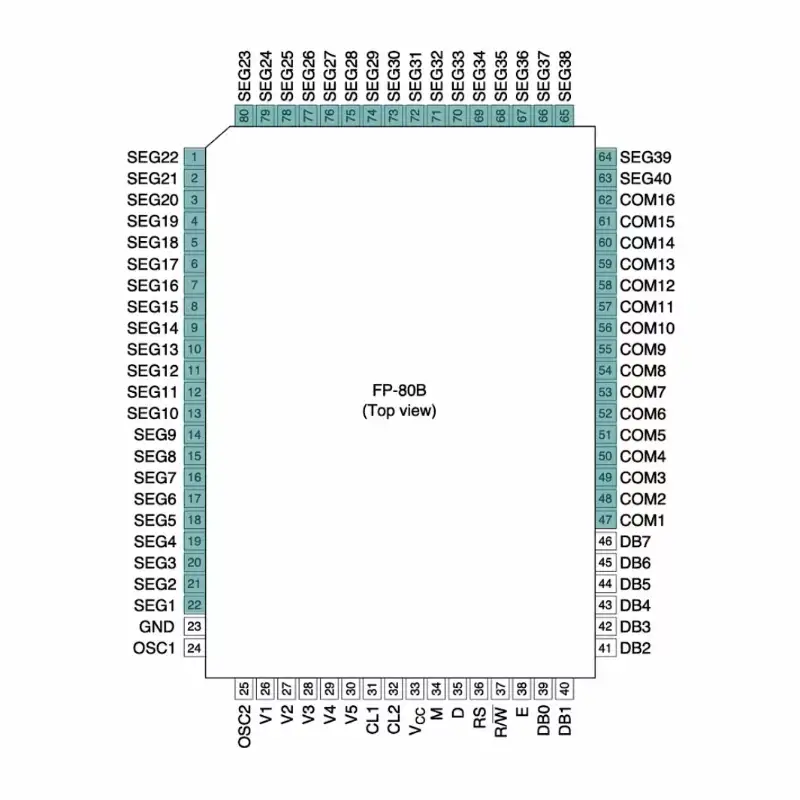

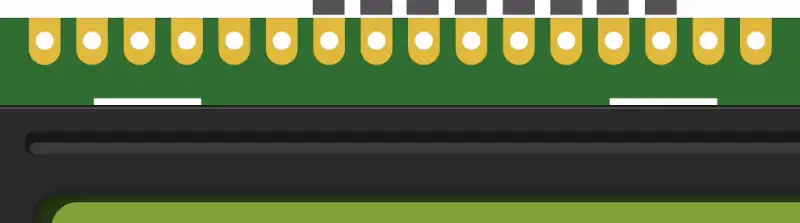

The back of the 16×2 LCD display houses the HD44780U, encased in a large black area to save on costs. The display itself has 16 pins, including 8 for data transmission, allowing for the control of LCD screens.

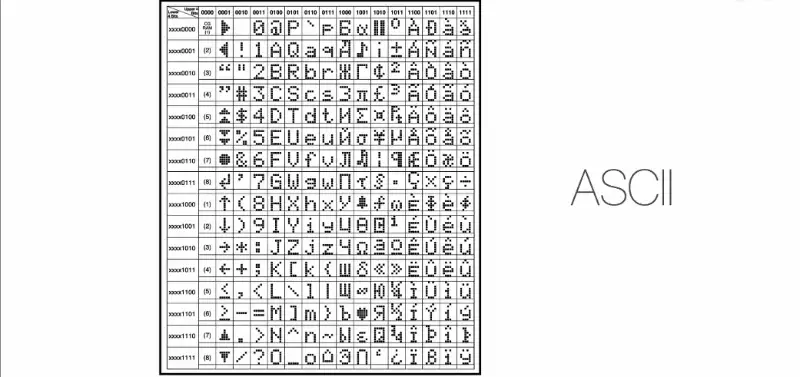

Given its pixel structure, the 16×2 LCD can display numbers, letters, and symbols, supporting up to 240 characters. These characters are encoded using ASCII, with 8 bits sufficient to represent each one. For instance, the ASCII code for ‘A’ is 0100 0001; setting the microcontroller pins to the corresponding high and low states will display ‘A’ on the desired segment.

Scaling Challenges

  • Microcontroller Limitations: The constraints of microcontroller technology play a significant role in the complexity of controlling a large number of pixels.
  • Complexity in Control: Overcoming these challenges involves creative engineering solutions to extend control across the entire screen efficiently.
  • Innovative Solutions: The strategies developed to address these issues highlight the technical creativity and problem-solving skills that have contributed to the 16×2 LCD’s enduring usability.

Advanced Control with HD44780U

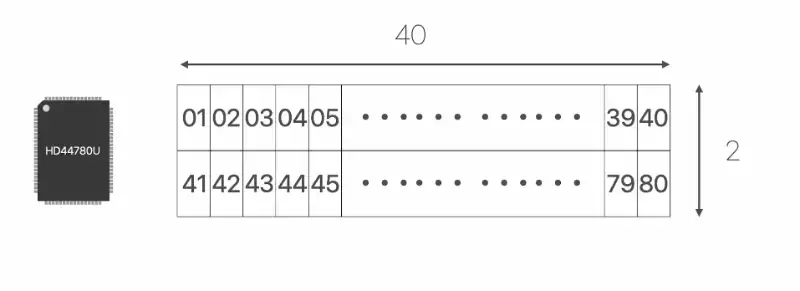

The HD44780U chip includes a byte of DRAM for each display segment, similar to the VRAM in modern graphics cards. While a flagship GPU like the Nvidia 4090 boasts 24GB of VRAM, the HD44780U manages with just 80 bytes, capable of displaying 40 characters horizontally across two lines, thus controlling up to 80 characters at a time.

However, the 1602 LCD can only show 32 characters in total. The HD44780U is a versatile chip, designed not just for the 1602 but for controlling various display specifications. In the case of the 1602, 48 bytes of the chip’s memory remain unused.

Programming the microcontroller involves sending the address of the DRAM location before the character data, allowing characters to be displayed in the desired segment.

Connecting and Controlling the LCD Display

The 1602 LCD display’s connection and control interface is ingeniously designed to maximize efficiency and ease of use. Utilizing a 16-pin configuration, including 8 for data transmission, the screen can communicate with a microcontroller to display a wide range of characters and symbols. This design reflects a deep understanding of the needs of electronic devices, ensuring that the screen can be easily integrated and controlled across a variety of applications.

Efficient Connection Scheme

  • Interface Design: The thoughtful arrangement of the screen’s pins facilitates straightforward and reliable connections with microcontrollers.
  • Data Transmission: Efficient data handling is key to the screen’s performance, allowing for quick and accurate display updates.
  • Maximized Efficiency: The design of the connection scheme is a clear example of the 1602 LCD’s focus on functional efficiency, enabling seamless integration into devices.

Memory and Character Display Limitations

While the 1602 LCD display is highly effective for a range of display purposes, it does have limitations in terms of memory and the complexity of characters it can display. These constraints are a reflection of the screen’s design focus on simplicity and efficiency. Despite these limitations, the 1602 LCD remains an invaluable tool for many applications, offering a straightforward and reliable solution for displaying basic text and symbols.

Navigating Limitations

  • Character Display Capabilities: The screen’s built-in character set and memory limit the complexity and quantity of information that can be displayed.
  • Memory Constraints: Limited memory impacts the screen’s ability to handle large volumes of data or highly detailed graphics.
  • Focused Functionality: These limitations underscore the 1602 LCD’s role as a device focused on delivering essential information effectively, without unnecessary complexity.

The Principle of Segmented Control

At the heart of the 1602 LCD display lies the principle of segmented control. This approach divides the display into manageable sections, each controlled independently. The HD44780U chip plays a pivotal role here, leveraging its COM and SEG pins to manage horizontal and vertical pixels, respectively. This segmentation is crucial, as it allows for the precise control necessary to display characters and symbols accurately.

Scanning and Visual Persistence

The scanning and visual persistence techniques employed by the 1602 LCD displays are key to its ability to display stable and clear images. By rapidly updating the display in a way that leverages the human eye’s persistence of vision, the screen can create the illusion of a continuous image. This method is particularly effective for ensuring that the screen remains readable and effective, even with its limited resolution and refresh rate.

Efficient Display Techniques

  • Scanning Mechanism: The implementation of a scanning mechanism allows the 1602 LCD to update its display efficiently, minimizing the processing load.
  • Leveraging Visual Persistence: This technique takes advantage of the human eye’s characteristics to maintain a stable and clear display.
  • Optimization of Resources: Through these methods, the 1602 LCD optimizes its hardware capabilities, ensuring effective performance across a range of applications.

Expansion and Limitations of Display Capabilities

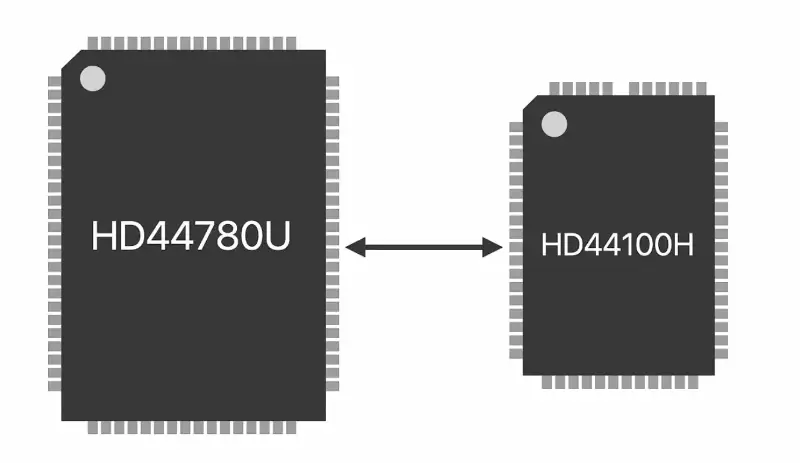

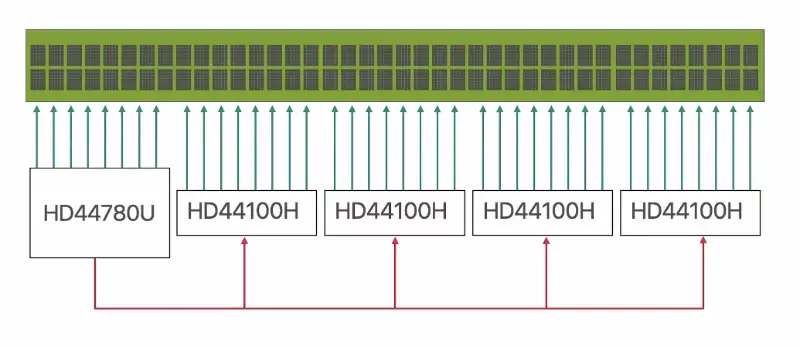

The HD44780U is designed to manage up to 80 characters, but its actual utilization depends on the specific display configuration. For the 16×2 LCD, additional driver circuits, like the HD44100H, are employed to assist in controlling the display, demonstrating the flexibility and scalability of this system.

Enhancing Capability

  • Driver Chip Integration: Additional chips can augment the screen’s ability to control pixels, enabling more detailed displays.
  • System Complexity: The inclusion of these chips increases the complexity of the display system, requiring careful design and programming to maintain efficiency.
  • Balancing Act: The 1602 LCD’s design reflects a careful consideration of the trade-offs between expanding capabilities and maintaining a simple, reliable system.

Conclusion and Personal Insight

Reflecting on the character LCD design, functionality, and enduring relevance offers valuable insights into the principles of effective technology design. This screen exemplifies how simplicity, focused functionality, and adaptability can result in a product that remains useful and valued across decades. The 1602 LCD’s journey from its inception to its current status as a staple in electronic displays underscores the importance of designing with purpose and understanding the needs of users—a lesson that remains relevant for technology developers today.
