How to Make LCD Glass?

Table of Contents

The landscape of technology is ever-evolving, with LCD displays playing a pivotal role in this revolution. From smartphones to large-scale digital billboards, LCDs have become an integral part of our daily lives. The heart of this technology lies in the LCD glass, a marvel of engineering that combines sophisticated materials and intricate processes to deliver crisp, clear images.

But how exactly is LCD glass made? LCD glass manufacturing involves preparing silicon and indium tin oxide, forming glass substrates, depositing layers, creating patterns, applying alignment layers, injecting liquid crystals, attaching polarizers, and rigorous quality control to ensure optimal display performance.

In this blog, we delve into the fascinating world of LCD glass manufacturing, unveiling the intricate processes and materials that transform simple ingredients into the vibrant displays we rely on every day.

Key Materials and Components of LCD Glass

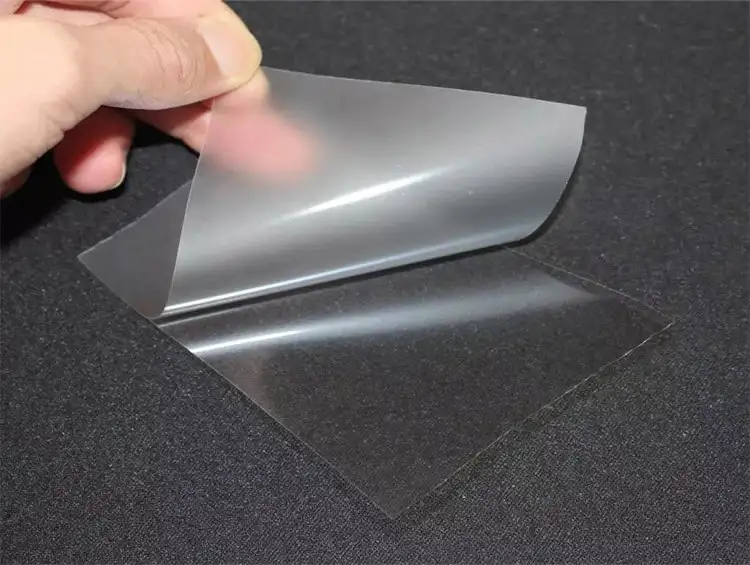

What materials are used in making LCD glass, and why are they chosen? The journey of creating LCD glass begins with selecting the right materials. The primary component is silicon, used to create glass substrates. Silicon is abundant and offers the necessary transparency and insulation properties. Another crucial material is indium tin oxide (ITO), a transparent conductive oxide used for the electrodes. ITO’s transparency and electrical conductivity make it ideal for controlling the display pixels.

Additional components include various compounds and chemicals used to create different layers within the LCD. For instance, polyimide is used for the alignment layer, crucial in directing the orientation of the liquid crystals. Meanwhile, liquid crystals themselves, the namesake of the technology, are organic compounds that change orientation and properties when subjected to electrical fields.

The combination of these materials results in the unique properties of LCD glass, providing the foundation for displaying clear, vibrant images. Each material is chosen for its specific properties, ensuring that the final product meets the high standards required for modern displays.

Step-by-Step Manufacturing Process of LCD Glass

1. Preparation of Raw Materials

The manufacturing process begins with the preparation of raw materials. High-purity silicon is procured and processed to form the base glass substrates. These substrates need to be flawless, as even minor imperfections can affect the display’s quality. The silicon is melted and then cooled in a controlled environment to form large glass sheets. This process requires precision to ensure uniform thickness and quality across the entire substrate.

2. Glass Substrate Formation

Once the raw silicon is processed, it’s time to form the glass substrates. The silicon is melted again and poured onto a flat surface, where it’s rolled into thin sheets. This step is critical as it determines the thickness and uniformity of the glass, which are vital for the display’s performance. The glass is then cut into the desired sizes, tailored to the specific requirements of the display being manufactured.

3. Layer Deposition

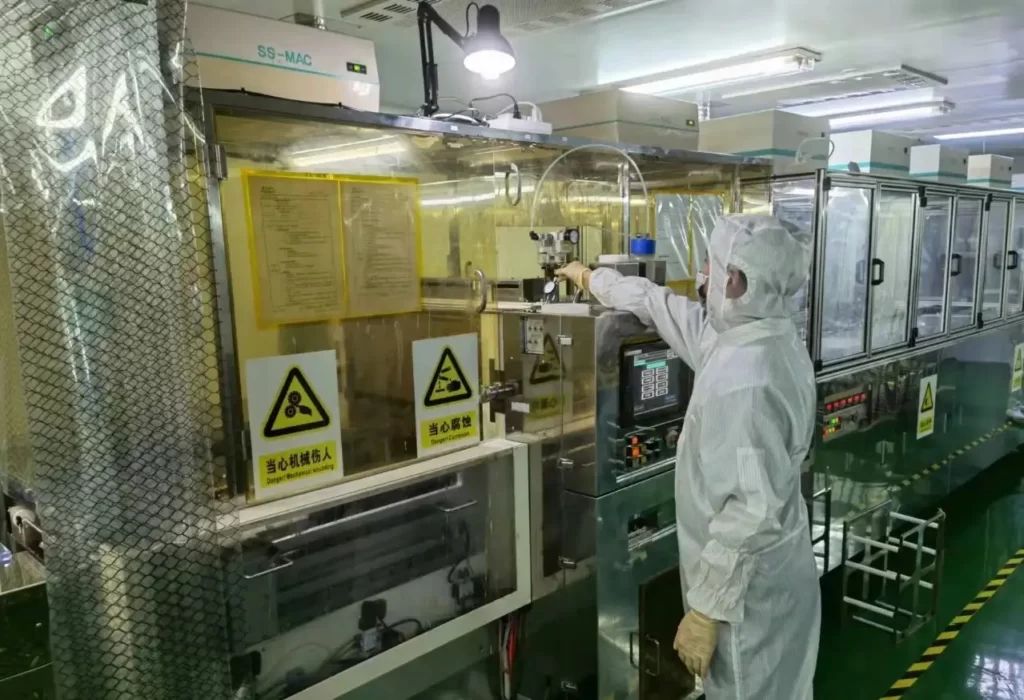

The next step involves the deposition of various layers onto the glass substrates. This includes the application of the ITO layer, which forms the electrodes of the display. The ITO layer is applied through a process called sputtering, where ITO particles are ejected onto the glass surface to form a thin, uniform layer. Other layers, such as the insulating layer and the alignment layer, are also applied during this stage.

4. Pattern Creation

After the layers are deposited, the glass undergoes a process called photolithography to create the pixel patterns. This involves using light to transfer a geometric pattern from a photomask to a light-sensitive chemical photoresist on the substrate. The exposed areas are then etched away, leaving behind the desired pattern for the pixels and circuits.

5. Alignment Layer Application

The alignment layer is critical in determining the orientation of the liquid crystals. This layer is applied to the glass substrates and then rubbed in a specific direction. The rubbing process creates microscopic grooves in the alignment layer, directing the liquid crystals to align themselves parallel to these grooves.

6. Liquid Crystal Injection

In this step, the liquid crystal material is injected between two glass substrates. The substrates are sealed around the edges to contain the liquid crystals. This step must be performed in a controlled environment to prevent any contamination, as impurities can degrade the display’s performance.

7. Polarizer Attachment

Finally, polarizing films are applied to the outer surfaces of the glass substrates. These polarizers are crucial in controlling the light passing through the display. They are aligned perpendicular to each other, with one polarizer orienting light horizontally and the other vertically. This alignment plays a key role in the display’s ability to modulate light and produce images.

The manufacturing process of LCD glass is a testament to the incredible advances in material science and engineering. Each step is meticulously planned and executed to ensure the highest quality and performance of the final product. As technology continues to advance, we can expect even greater innovations in LCD glass manufacturing, paving the way for more stunning and efficient displays.

Quality Control and Testing in LCD Glass Manufacturing

In the intricate world of LCD glass manufacturing, quality control and testing are not just crucial steps but the backbone of the entire process. Ensuring that each piece of LCD glass meets the highest standards is essential for the reliability and performance of the final display products. This section delves into the detailed procedures and importance of quality control and testing in the LCD glass manufacturing process.

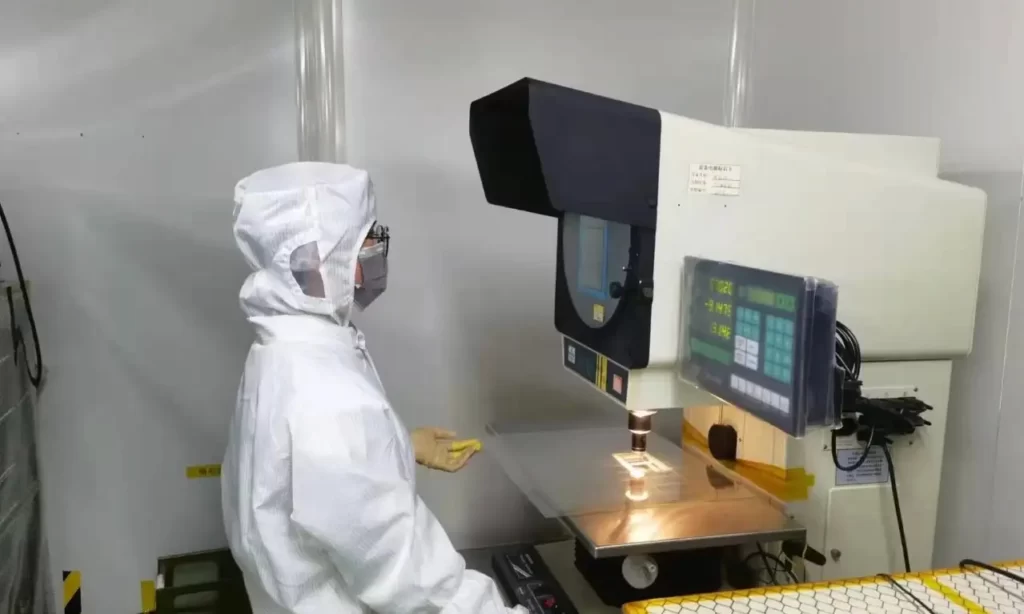

Rigorous Quality Control Measures

Initial Inspection

Quality control begins from the moment raw materials enter the manufacturing facility. Each batch of silicon, indium tin oxide, and other compounds is thoroughly inspected for purity and consistency. This initial screening is critical to prevent any subpar materials from entering the production line, as they can lead to defects in the final product.

In-process Monitoring

Throughout the manufacturing process, from glass substrate formation to the final assembly, in-process monitoring is conducted. This involves real-time inspections and tests at various production stages to ensure that each phase meets the set parameters. Technicians and engineers use a combination of visual inspections, automated scanning, and measurement tools to monitor the thickness of glass substrates, uniformity of conductive layers, and precision of the etching patterns.

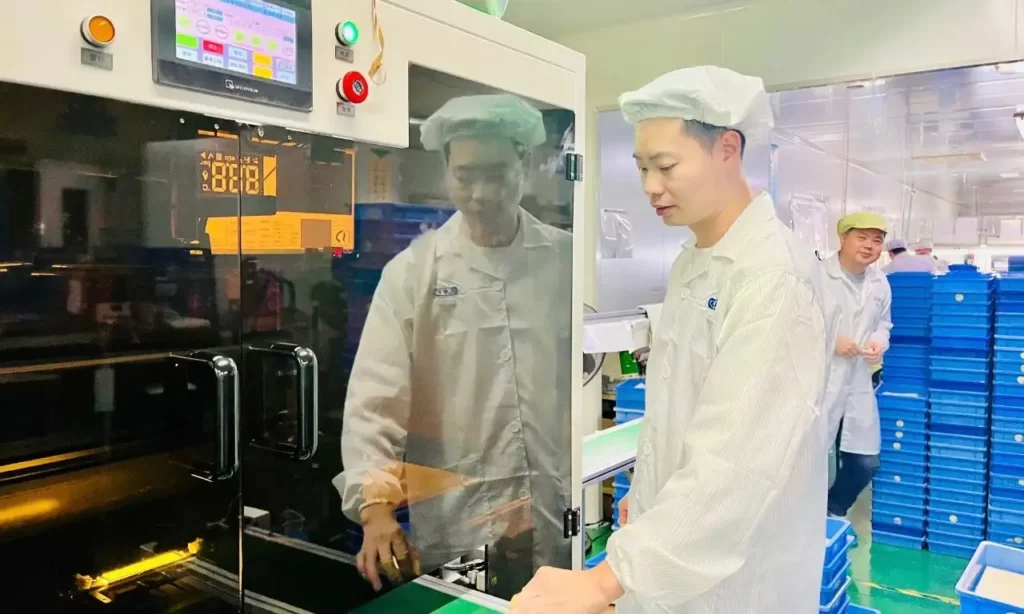

Comprehensive Testing Procedures

Electrical Testing

Electrical testing is paramount in assessing the functionality of the LCD glass. This includes testing the conductivity of the ITO layer and ensuring the integrity of the electrical circuits. Specialized equipment measures the resistance and capacitance of the conductive layers to ensure they are within acceptable limits. This testing guarantees that the LCD glass will respond correctly to electrical signals during operation.

Optical Testing

The optical properties of LCD glass are critical for display quality. Tests are conducted to measure parameters like light transmittance, color accuracy, and contrast ratio. Advanced spectrophotometers and luminance meters are used to ensure that the glass can produce the full spectrum of colors accurately and maintain clarity under various lighting conditions. Additionally, the uniformity of the liquid crystal layer and its alignment are scrutinized to prevent issues like color shifting or image distortion.

Stress and Durability Testing

LCD glass must withstand various physical and environmental stresses. Durability testing involves subjecting the glass to extreme temperatures, humidity levels, and physical impacts to simulate real-world conditions. Thermal cycling tests check the glass’s ability to withstand rapid temperature changes, a common scenario in many consumer electronics. Mechanical stress tests, including pressure and impact tests, assess the glass’s resistance to breakage and deformation.

Longevity and Reliability Tests

Over time, LCD displays can degrade due to prolonged use and environmental factors. Longevity tests simulate extended periods of operation to evaluate how the display quality changes over time. This includes running the LCD glass under continuous operation for thousands of hours, monitoring for any signs of pixel failure, color degradation, or loss of brightness. These tests are crucial for predicting the lifespan of the display and ensuring that it remains reliable over its intended use period.

Importance of Quality Control and Testing

The significance of quality control and testing in LCD glass manufacturing cannot be overstated. These processes are vital for ensuring that the final displays meet the high standards expected by consumers and businesses alike. They not only guarantee the performance and durability of the displays but also contribute to the brand’s reputation for quality and reliability.

Quality control and testing are also essential for identifying and addressing potential issues early in the manufacturing process. This proactive approach helps in reducing waste, improving efficiency, and maintaining high production standards. It’s a testament to the commitment to excellence in the field of LCD technology.

Innovations and Future Trends in LCD Glass Technology

Recent Innovations

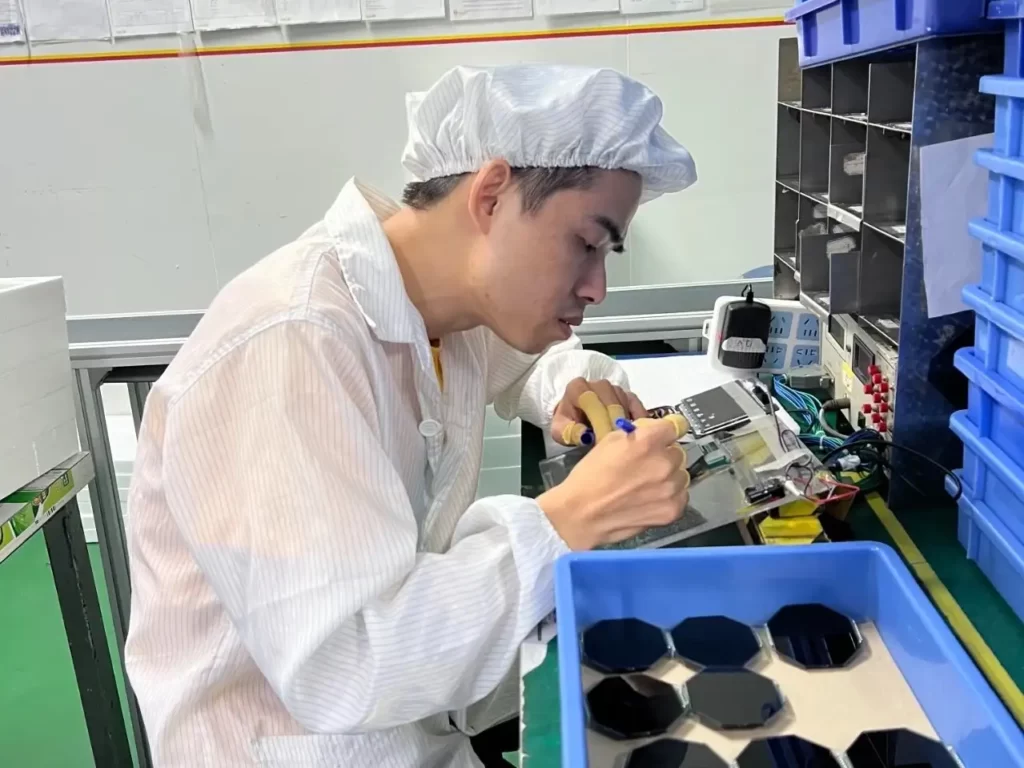

The field of LCD glass manufacturing is not static; it’s a hotbed of innovation. Recent years have seen several advancements. One significant development is in the area of thin-film transistors (TFTs), which have become more efficient, allowing for higher resolution displays with lower power consumption. Another innovation is in the production of ultra-thin glass substrates, enabling the creation of more flexible and lighter displays.

Future Developments and Trends

Looking to the future, we can anticipate several exciting trends in LCD technology. One area of focus is the enhancement of environmental sustainability in manufacturing processes, reducing the ecological footprint of display production. Another trend is the continued push towards higher resolutions and larger display sizes, catering to the growing demand for immersive viewing experiences. Furthermore, we can expect advancements in integrating touch functionality directly into the LCD glass, paving the way for more interactive and user-friendly displays.

Conclusion

The blog from raw materials to the sophisticated LCD glass that powers our displays is a blend of science, engineering, and art. Through meticulous manufacturing processes, rigorous quality control, and continual innovations, LCD glass has become a cornerstone of modern display technology. As we look ahead, the continued evolution of this field promises not just better displays, but also a brighter future for technology as a whole. In this dynamic landscape, the possibilities are as transparent and limitless as the glass itself.
