Introduction to 7-Segment Displays
In today’s digital world, numeric data is everywhere — from digital clocks and microwave ovens to industrial meters and medical devices. At the heart of many of these readouts is a simple yet efficient technology: the 7-segment display.
A 7-segment display is a type of electronic display device used to show decimal numerals. As the name suggests, each digit is made up of seven individual segments, labeled A through G, that can be turned on or off to form numbers and some characters. A small optional eighth segment is often used for a decimal point.
Despite the rise of more complex displays like OLED and TFT, 7-segment displays remain widely used due to their low power consumption, cost-effectiveness, and excellent readability — especially in compact, embedded, or single-purpose devices.
Why Is It Still So Popular?
- Simplicity: Easy to control via microcontrollers or driver ICs.
- Durability: Long life span, especially in LED and LCD versions.
- Cost: Highly affordable even in low-volume applications.
- Customization: Flexible layout, digit size, and backlight options.
Where It’s Commonly Seen
You’ve probably encountered 7-segment displays dozens of times already today — in your alarm clock, on your stove, or in an elevator. But beyond home appliances, they are crucial in fields like industrial control, medical diagnostics, and automotive dashboards.
LCD vs LED 7-Segment Displays
There are two main types of 7-segment displays in the market:
- LED-based: Bright, sharp, and great for visibility even in bright environments.
- LCD-based: Energy-efficient, sleek, and perfect for battery-powered devices.
Each has unique advantages, which we’ll explore in detail later in this article.
How a 7-Segment Display Works
A 7-segment display is made up of seven individual light segments, arranged in a specific pattern to form numerals from 0 to 9. These segments are typically labeled A to G, and an optional decimal point (DP) is sometimes included for displaying floating-point numbers.
Segment Layout
Here is how the segments are positioned:
A
F B
G
E C
D (DP)
Each digit is composed of:
- Segments A–G: Straight lines that illuminate to form numbers.
- DP (Decimal Point): Often used for timers, clocks, and measurement readouts.
For example:
- The digit “8” is shown by lighting up all 7 segments.
- The digit “1” lights only segments B and C.
This simplicity makes 7-segment displays extremely efficient and easy to program.
Common Anode vs. Common Cathode
There are two common configurations for driving these segments:
1. Common Cathode (CC)
- All segment cathodes (negative terminals) are connected to GND.
- Individual anodes (positive terminals) are connected to the control circuit.
- Logic “HIGH” turns a segment ON.
2. Common Anode (CA)
- All segment anodes are connected to VCC.
- Individual cathodes are connected to the control circuit.
- Logic “LOW” turns a segment ON.
Knowing the difference is essential when selecting compatible driver ICs or microcontrollers.
Driving Methods
There are several methods for driving a 7-segment display, depending on the complexity of the application:
- Direct Drive: Ideal for single or dual digits.
- Multiplexing: Shares segment control lines across multiple digits, saving I/O pins.
- Driver ICs: Such as MAX7219, CD4511, or TM1637, which simplify control via SPI or I2C.
Types of 7-Segment Displays
7-segment displays come in a wide variety of formats to suit different environments and design requirements.
A. By Display Technology
1. LED (Light Emitting Diode)
- Bright and vibrant
- Best for indoor and outdoor use
- Common in clocks, counters, and public displays
2. LCD (Liquid Crystal Display)
- Low power consumption
- Sunlight-readable with reflective/positive mode
- Popular in portable devices, medical instruments, meters
3. OLED (Organic LED)
- High contrast and flexibility
- Higher cost
- Rare for 7-segment, but used in specialty applications
B. By Number of Digits
- Single-digit: Simple counters or indicators
- Two-digit: Thermometers, voltage meters
- Four-digit: Clocks, timers, weight scales
- Custom multi-digit: Up to 12+ digits for industrial use
C. By Mounting Type
- Through-Hole (THT): Strong mechanical connection, ideal for rugged devices
- Surface Mount (SMD): Compact and suitable for mass production
D. Optional Features
- Backlight Color: Red, green, blue, white, yellow
- Decimal Point or Colon: Especially for clocks
- Custom Symbols: Add letters or icons for branding
- Integrated IC: Easier to drive and interface
Key Applications Across Industries
One of the reasons 7-segment displays remain relevant is their broad adaptability across industries. Their simple structure, high visibility, and low power requirements make them suitable for a wide range of use cases.
Here’s a breakdown of where you’ll commonly find 7-segment displays in the real world:
A. Consumer Electronics
- Microwave Ovens: For displaying timers and cooking settings.
- Digital Clocks: The most iconic use of 7-segment displays.
- Bathroom Scales: Lightweight displays showing weight readings clearly.
- Remote Controls: Channel or input indicators.
These products benefit from the clear, intuitive numeric feedback a 7-segment display provides, often at a low BOM cost.
B. Medical Devices
- Thermometers: Shows temperature readings in Celsius or Fahrenheit.
- Blood Pressure Monitors: Clear numerical readouts are essential for patients of all ages.
- Glucometers: Displaying vital blood sugar readings with clarity.
Medical devices rely heavily on low-power, easy-to-read displays—making LCD 7-segment displays especially popular in this field.
C. Industrial Equipment
- Panel Meters: Voltage, current, temperature, or frequency readings.
- Machine Interfaces: Used on factory floors where rugged, reliable displays are essential.
- Power Supply Units: Often incorporate multi-digit LED displays for voltage and amp readouts.
In harsh environments, LED 7-segment displays are favored for their brightness and robustness.
D. Automotive Applications
- Dashboard Readouts: Odometers, gear indicators, fuel level displays.
- Climate Control Panels: Showing temperature and fan speed.
- Rearview Camera Systems: Distance indicators in parking sensors.
These displays often need to be sunlight-readable and vibration-resistant, hence 7-segment modules are common in automotive use.
E. Telecommunications & Networking
- Switchboards & Test Instruments: Indicate connection status or test parameters.
- Signal Strength Meters: Numeric signal level feedback.
F. Energy & Utilities
- Smart Meters: Display voltage, usage data, and billing units.
- Solar Panel Controllers: Showing battery charge, current, and wattage.
In many of these applications, low-power LCD 7-segment displays are used for battery longevity and extended operating hours.
LCD vs LED 7-Segment Displays: Pros and Cons
Choosing between LED and LCD 7-segment displays depends on your application requirements. Each has distinct advantages:
Comparison Table
| Feature | LED 7-Segment | LCD 7-Segment |
|---|---|---|
| Power Consumption | Higher | Ultra-low (ideal for battery-powered devices) |
| Visibility in Dark | Excellent (no backlight needed) | Requires backlight in dim conditions |
| Sunlight Readability | Excellent | Good with reflective mode |
| Cost | Lower for basic types | Economical at high volumes |
| Customization | Limited to segment color and digit count | Fully customizable layout, symbol, icons |
| Durability | Strong, especially in harsh environments | Good, suitable for indoor and portable use |
| Viewing Angle | Wide | Moderate (depends on TN/STN technology) |
| Color Options | Red, green, blue, white | Monochrome (custom colors via backlight) |
| Typical Use Cases | Clocks, meters, automotive displays | Medical devices, handheld instruments, smart meters |
When to Use LED 7-Segment Displays
- If brightness is key (e.g. outdoor visibility or low-light environments)
- If your application is plugged in and power consumption is not a concern
- If you need long-lasting, rugged displays
When to Use LCD 7-Segment Displays
- If your product is battery-powered
- If you want to customize the display layout or symbols
- If low-cost mass production is important
- If your display must operate for long durations with minimal energy

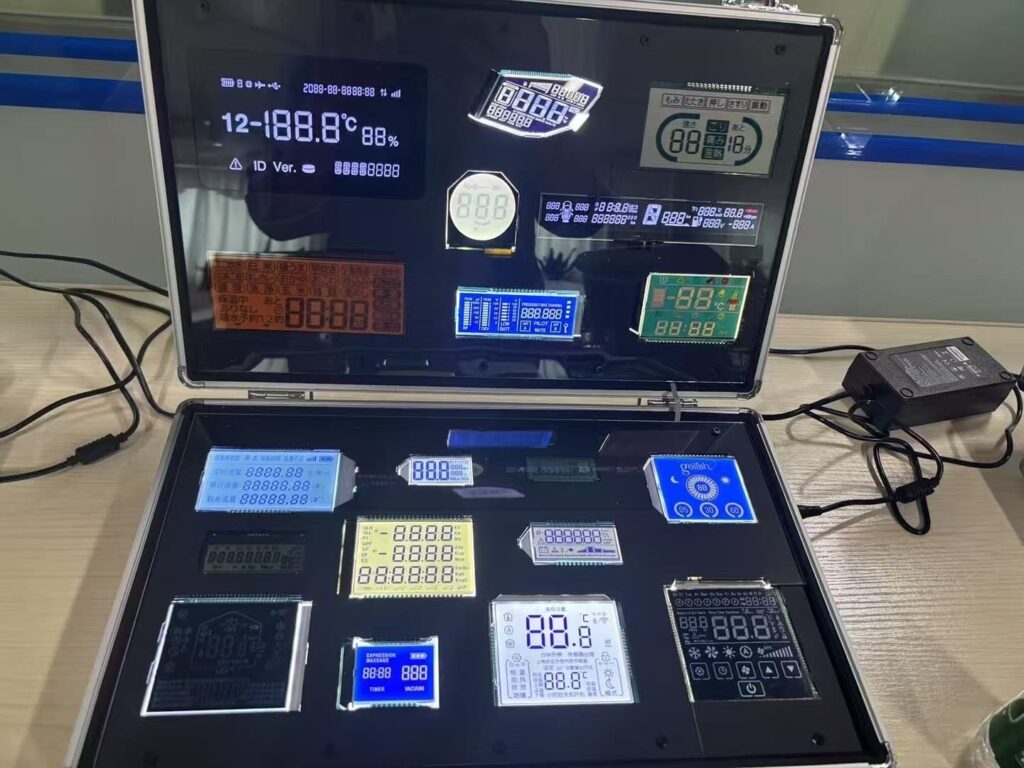

Customization Options for OEM Clients
At Longtech, we understand that every product is unique — and so should be your display. We offer full customization services for 7-segment displays to match your product’s design, function, and brand identity.
Whether you’re building a handheld medical device, a smart meter, or a wearable, our engineering team can help you design a tailor-made display from the ground up.
Available Customization Options

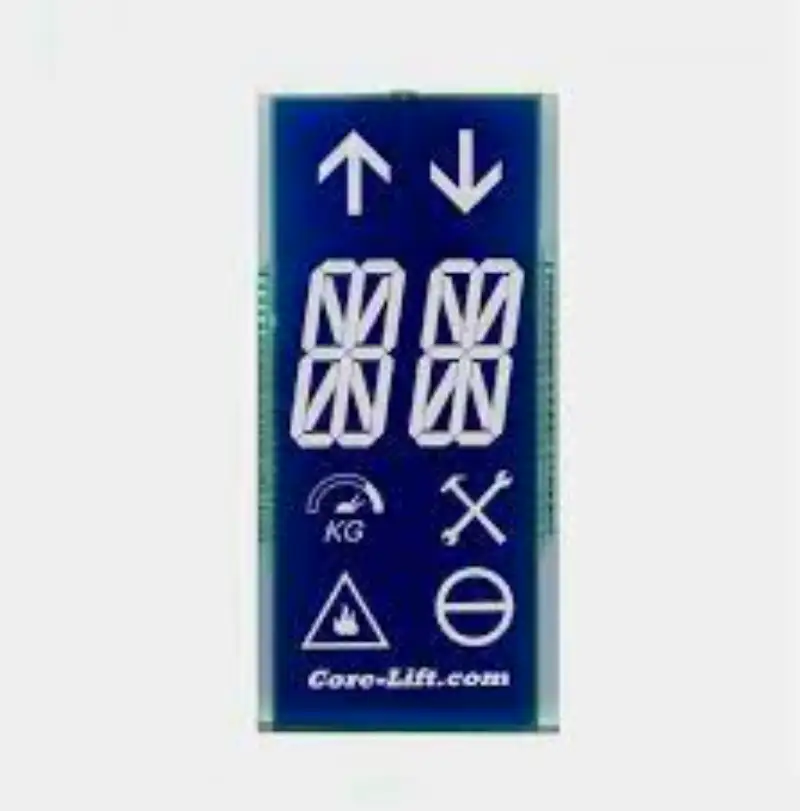

Segment Layout
- Standard 7-segment numeric layout
- Custom alphanumeric or icon segments (e.g. °C, %, kg, V)
- Add bar indicators, battery icons, arrows, or brand logos
Number of Digits
- 1-digit to 12-digit modules
- Fixed or scrolling display options
Display Size
- Digit height from 3mm to 60mm or more
- Ultra-compact or large-format for visibility
Backlight and Color Options
- LED backlight: White, red, blue, green, amber
- Reflective, transmissive, or transflective modes for LCDs
- High-contrast negative displays (white on black)
Polarizer Type
- Positive: Dark segments on a light background
- Negative: Light segments on a dark background
Drive Method Support
- Static drive
- 1/2 duty, 1/3 duty, 1/4 duty (for LCD)
- SPI, I2C, 6800, 8080 parallel interface
Mounting and Connector Options
- COB (Chip on Board), COG (Chip on Glass), or COF(Chip on Film).（COB vs COG vs COF LCD Modules）
- FPC, Zebra, Pin Header, or Custom Tail Design
Surface Treatments
- Anti-glare coating
- UV and scratch-resistant overlays
- Waterproofing (IP65+ for outdoor use)
Engineering Support
Our display engineers provide:
- Custom drawings within 48 hours
- Sample delivery within 7-14 working days
- Firmware/driver guidance upon request
With ISO-certified production and strict quality control, we guarantee your custom 7-segment displays are reliable, affordable, and production-ready.
How to Choose the Right 7-Segment Display for Your Project
Choosing the right 7-segment display isn’t just about digits — it’s about ensuring your product performs well under real-world conditions. Here’s a step-by-step guide we offer our customers to make informed decisions.
1. Power Considerations
- Battery-powered device? → Go for LCD
- Powered by adapter or USB? → LED might work better
2. Visibility Requirements
- Outdoor or high ambient light? → Use high-brightness LED
- Low-light or indoor use? → LCD or LED with backlight
- Need night visibility? → Choose a backlit LCD or LED
3. Digit Size & Viewing Distance
- Pocket device or small readout? → 6–10mm digit height
- Wall-mounted or industrial use? → 20–50mm+ digit height
4. Interface Compatibility
- Using a microcontroller? → Check GPIO availability
- Use I2C/SPI for fewer pins and easier control
- Need parallel interface (e.g. 8080/6800)? → Available on request
5. Environmental Conditions
- High temperature or vibration? → Consider robust LED modules
- Humid environments? → We offer conformal coating or IP-rated modules
- Medical or lab use? → Choose antistatic-treated LCDs
6. Branding & Aesthetics
- Want a modern look? → Consider negative LCD with white backlight
- Need a traditional feel? → Classic red LED is timeless
- Add your logo, units, or graphical elements directly on the glass
7. Production Volume
- For prototypes: We support small MOQ (starting from 200 pcs)
- For mass production: Competitive pricing with volume discounts
- Lifelong availability & no EOL surprises
Example: Choosing a Display for a Handheld Thermometer
- Needs to show 3-digit temperature + °C
- Must be battery-efficient → LCD 7-segment
- Clear visibility indoors → Reflective or backlit LCD
- Low I/O count on MCU → 1/4 duty with driver IC
- Result: Custom 3+1 digit COG LCD with integrated °C icon
Why Choose Us as Your 7-Segment Display Supplier
At Longtech, we don’t just manufacture displays — we deliver complete display solutions tailored to your product needs, timeline, and budget. Here’s why over 500 global brands trust us as their long-term supplier for 7-segment displays.
1. Decades of Manufacturing Experience
With over 20 years in the LCD and LED display industry, we understand both the technical and market sides of product development. From early prototyping to mass production, we’ve supported projects in consumer electronics, healthcare, energy, industrial control, and more.
2. Full-Custom Design Capabilities
Whether you need a standard 4-digit LED display or a fully custom 6-digit LCD module with icons and backlight, our in-house R&D team will support your project from sketch to production.
- Custom segment layout & icons
- Custom glass shape and outline
- Custom voltage and interface support
- Backlight and color options
We don’t offer cookie-cutter solutions. Every module is optimized for your application.
3. High-Speed Prototyping
We know time-to-market is critical. Our engineering and production workflow allows for:
- Drawings in 1–2 business days
- Samples in 7–10 working days
- Mass production within 3–4 weeks
4. Quality Assurance You Can Trust
All displays are manufactured under ISO9001-certified processes with:
- 100% visual and functional inspection
- Temperature and vibration testing
- RoHS & REACH compliance
- Certifications available: CE, UL, FCC (upon request)
Our goal is zero-defect delivery, even at high volumes.
5. North American Warehouse
For U.S. and Canadian customers, we offer:
- U.S.-based warehousing and drop-shipping
- Reduced delivery time and customs delays
- Small batch restocking available on demand
6. Global Client Support
- English-speaking project managers
- 24-hour technical response window
- Full documentation: drawings, datasheets, and QC reports
- Firmware and driver support (Arduino, STM32, Raspberry Pi, etc.)
Technical Support & Certifications
We understand that great hardware means nothing without the support infrastructure to back it up. That’s why we provide comprehensive services to engineers, product managers, and sourcing teams alike.
Engineering & Development Support
- Free technical consultation on design and selection
- Full specification drawings and electrical diagrams
- Mechanical CAD support for housing integration
- Firmware driving examples (C, Python, Arduino)
Prototyping to Mass Production
- We handle both small and large runs
- Cleanroom production and SMT capability
- Long-term supply commitments for stable sourcing
- EOL (End-of-Life) warning system to prevent supply risks
Certifications
All modules and production facilities conform to industry standards:
| Certification | Description |
|---|---|
| ISO9001 | Quality management system |
| RoHS | Restriction of hazardous substances |
| REACH | Compliance with EU chemical regulations |
| UL/CE | Safety and performance (upon request) |
| FCC | Electromagnetic interference (optional) |
Environmental Responsibility
We follow eco-conscious production guidelines and offer lead-free, halogen-free, and recyclable display materials where needed.
Ongoing Technical Support
- Lifetime application support for custom displays
- Online troubleshooting guides
- Firmware libraries for common MCUs
We work not just as a supplier, but as your technical partner throughout the product lifecycle.
Conclusion: A Smarter Way to Display Numbers
Whether you’re building a smart appliance, a medical device, or an industrial control unit, a 7-segment display remains one of the most efficient, reliable, and cost-effective ways to show numeric data.
At Longtech, we combine:
- Deep industry knowledge
- Flexible customization
- Speedy prototyping
- Global support
…to help you build the perfect display for your product.
Let us handle the display, so you can focus on building what matters most — great products.
Ready to Get Started?
We offer:
- Free engineering consultation
- Fast quote turnaround
- Custom samples within 7–10 days
Contact us today to request a quote or discuss your project with our display specialists.
📧 Email: zhong@longtech-display.com
🌐 Website: www.longtech-display.com/contact
FAQ: Everything You Need to Know About 7-Segment Displays
These are the most common questions our clients ask when working with 7-segment displays. Optimized for both clarity and SEO.
Q1: What is the difference between a 7-segment and a 14-segment display?
A 7-segment display shows only numbers and a few characters. A 14-segment display includes additional segments to form letters and symbols, useful for alphanumeric displays.
Q2: Can I use a 7-segment display with Arduino or Raspberry Pi?
Yes! Most 7-segment displays can be driven using microcontrollers like Arduino, STM32, and Raspberry Pi, often through shift registers or driver ICs such as TM1637 or MAX7219.
Q3: What is the typical voltage for a 7-segment display?
- LED modules: Typically 2V–3.3V per segment (with current-limiting resistors)
- LCD modules: Driven by 3.0V–5.0V, depending on the IC and duty cycle
We provide full voltage specs with each model.
Q4: What’s the difference between common cathode and common anode?
In common cathode, all cathodes (negative terminals) are shared. In common anode, all anodes (positive terminals) are shared. The difference affects how you drive the segments.
Q5: Can I customize the segment layout and add icons?

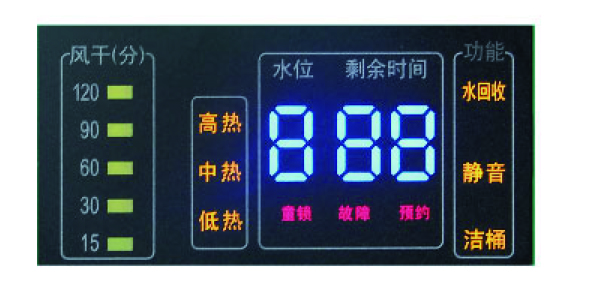

Absolutely. We specialize in custom 7-segment LCD and LED modules, including special icons, units (°C, %, kg), and branding.
Q6: What is your typical lead time for custom displays?
- Drawings: 1–2 days
- Samples: 7–10 days
- Mass production: 3–4 weeks
- Urgent requests: Available with priority service
Q7: What is your minimum order quantity (MOQ)?
- For standard models: 200 pcs
- For custom models: 500–1000 pcs, depending on design complexity
- Flexible MOQs available for development projects
Q8: Do you provide long-term supply and support?
Yes, we offer stable supply for 5–10 years, especially for medical, automotive, and industrial clients. We also provide EOL notifications and alternate design support.
Q9: Do your displays meet RoHS and REACH standards?
Yes. All our displays are RoHS- and REACH-compliant, and we can provide certifications as required.
Q10: How do I get a quote or sample?
Simply email us your specs, application, and volume estimate. Our team will respond within 1 business day with suggestions and pricing.
