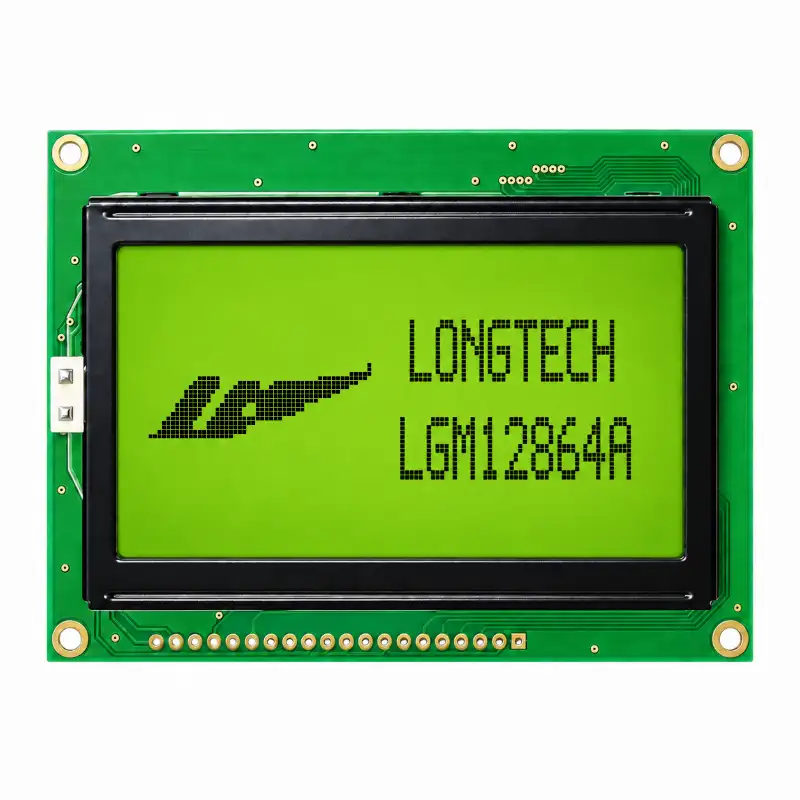

128×64 COB Graphic LCD Module – LGM12864A
Standard 128×64 COB graphic LCD module for industrial equipment and embedded systems.
Resolution: 128×64 Dots
Structure: COB
Controller IC: AIP31107 / AIP31108
Interface: 6800
Module Size: 93.0 × 70.0 mm
Viewing Area: 72.0 × 40.0 mm
Supply Voltage: 5V / 3.3V
Product Description
The Longtech LGM12864A is a 128×64 COB graphic LCD module for industrial instruments, control panels and embedded systems. It measures 93.0 × 70.0 mm, with a 72.0 × 40.0 mm viewing area, 0.48 × 0.48 mm dots and a 0.52 × 0.52 mm dot pitch for clear presentation of icons, menus, graphics and measurement data.
The module uses an AIP31107 / AIP31108 controller and supports 6800 interface. It is available with STN or FSTN technology, positive or negative display modes, and 6:00 or 12:00 viewing directions. It is available in 5.0 V or 3.3 V versions.
Display appearances include yellow-green, blue, gray, white and black. Backlight options include no backlight or yellow-green, blue, white, green, amber and red LEDs. The final display mode, backlight color and electrical configuration should be confirmed before sample approval.
Technical Specifications
Drawings & Downloads
Download technical documents for product evaluation and integration.
Custom Options
We support flexible LCD customization for industrial applications, from optical performance and backlight configuration to interface and mechanical design.
LCD Technology
TN, STN, FSTN and VA display technologies for different readability and contrast requirements.
Backlight & Color
LED backlight colors, brightness levels and RGB backlight configurations.
Interface & Controller
SPI, I²C, parallel interfaces and controller IC options based on system requirements.
Mechanical Design
Custom module dimensions, viewing area, glass outline and mounting structure.
Temperature Range
Standard and wide-temperature solutions for demanding industrial environments.
Connector & Pinout
Custom FPC, pin assignment, connector type and cable length for easier integration.
