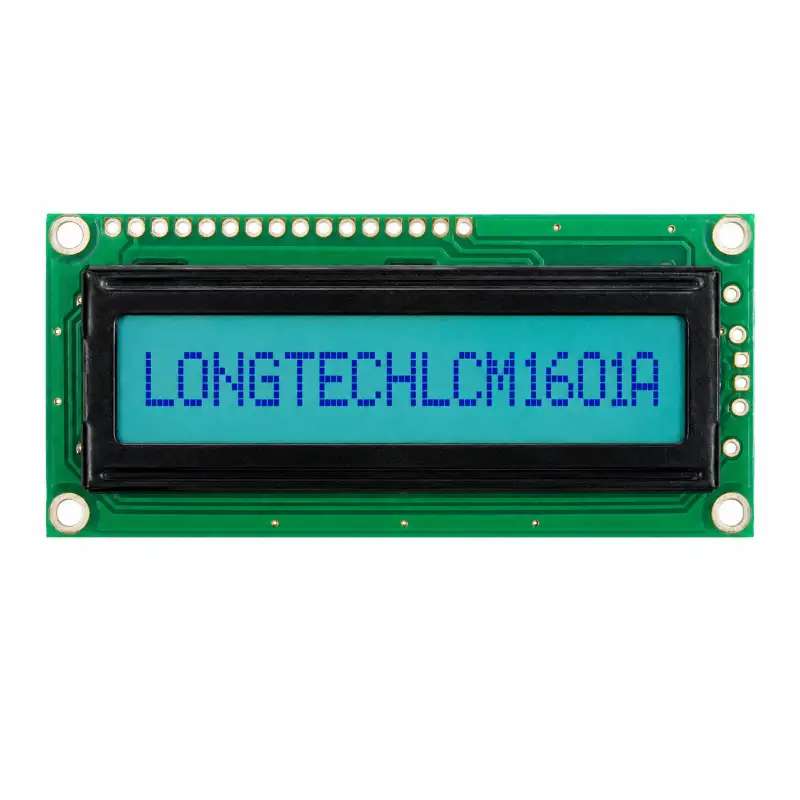

16×1 Character LCD Module – LCM1601A
LCM1601A is an 16×1 COB character LCD module featuring an outline size of 80.0 × 36.0 mm, a viewing area of 64.5 × 13.8 mm, 6800 and SPI interfaces, and an ST7066 controller IC.
Technical Specifications
Drawings & Downloads
Download technical documents for product evaluation and integration.
Custom Options
We support flexible LCD customization for industrial applications, from optical performance and backlight configuration to interface and mechanical design.
LCD Technology
TN, STN, FSTN and VA display technologies for different readability and contrast requirements.
Backlight & Color
LED backlight colors, brightness levels and RGB backlight configurations.
Interface & Controller
SPI, I²C, parallel interfaces and controller IC options based on system requirements.
Mechanical Design
Custom module dimensions, viewing area, glass outline and mounting structure.
Temperature Range
Standard and wide-temperature solutions for demanding industrial environments.
Connector & Pinout
Custom FPC, pin assignment, connector type and cable length for easier integration.
Need a Custom LCD Solution?
Share your specifications with our engineering team for a technical review and quotation.
