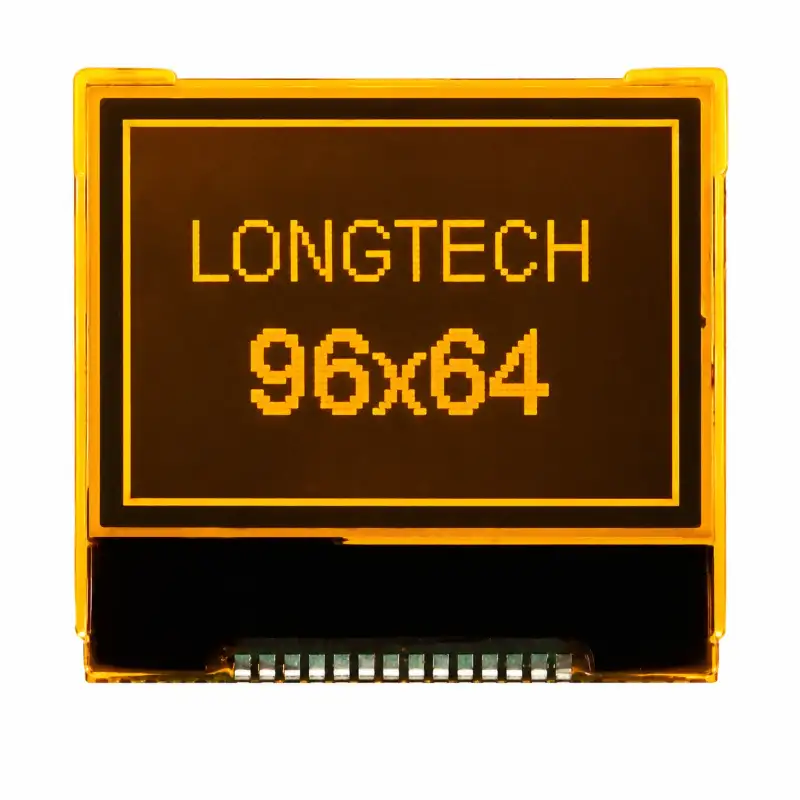

96×64 COG Graphic LCD Module – LGC9664A
Standard 96×64 COG graphic LCD module for industrial equipment and embedded systems.
Resolution: 96×64 Dots
Structure: COG
Controller IC: AIP31567
Interface: SPI
Module Size: 32.0 × 29.5 mm
Viewing Area: 29.0 × 20.0 mm
Supply Voltage: 5V / 3.3V
Product Description
The Longtech LGC9664A is a 96×64 COG graphic LCD module for industrial instruments, control panels and embedded systems. It measures 32.0 × 29.5 mm, with a 29.0 × 20.0 mm viewing area for clear presentation of icons, menus, graphics and measurement data.
The module uses an AIP31567 controller and supports SPI interface. It is available with STN or FSTN technology, positive or negative display modes, and 6:00 or 12:00 viewing directions. Supply voltage depends on the selected controller and module configuration.
Display appearances include yellow-green, blue, gray, white and black. Backlight options include no backlight or yellow-green, blue, white, green, amber and red LEDs. The final display mode, backlight color and electrical configuration should be confirmed before sample approval.
Drawings & Downloads
Download technical documents for product evaluation and integration.
Custom Options
We support flexible LCD customization for industrial applications, from optical performance and backlight configuration to interface and mechanical design.
LCD Technology
TN, STN, FSTN and VA display technologies for different readability and contrast requirements.
Backlight & Color
LED backlight colors, brightness levels and RGB backlight configurations.
Interface & Controller
SPI, I²C, parallel interfaces and controller IC options based on system requirements.
Mechanical Design
Custom module dimensions, viewing area, glass outline and mounting structure.
Temperature Range
Standard and wide-temperature solutions for demanding industrial environments.
Connector & Pinout
Custom FPC, pin assignment, connector type and cable length for easier integration.
